LY-SMA34 Three Phase Meter Box
Introduction

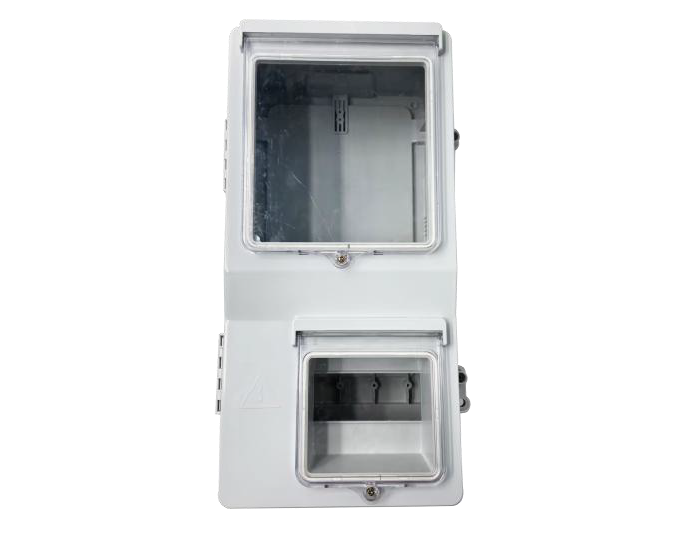

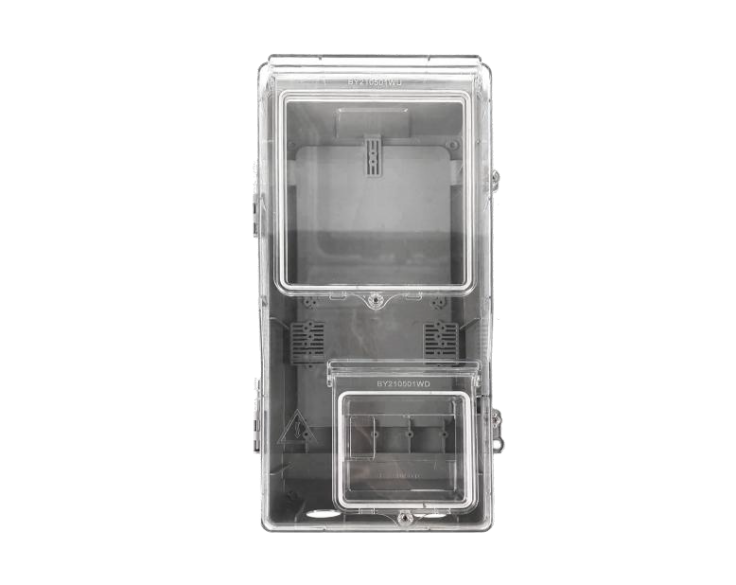

LY-SMA34 Three Phase Meter Box is specially designed for anti-tampering protection of the meter. One BS-type meter can be mounted with a bottom connection. The enclosure has two separated transparent windows, a transparent /non-transparent top cover, and a non-transparent base. The material of the enclosure is polycarbonate, featuring UV resistance and a V0 flame resistance rating. Pole-mounted or wall-mounted, or lock and key protection, are based on project demand. The alarm sensor for enclosure opening is a reserved function.
| Items | Parameters |
|---|---|
| Dimension | L470mm*W254mm*H139mm |
| Material of top cover | PC+10%GF non-transparent/ PC transparent |
| Material of turnover window | PC transparent |
| Material of base | PC+10%GF non- transparent |
| Protection | IP54(without heat dissipation or water drainage |
| hole), IK10 | |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Installation provision for MCB | Yes |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Temperature | -30℃ to 80℃ |
| Installation provision for MCB | Yes |

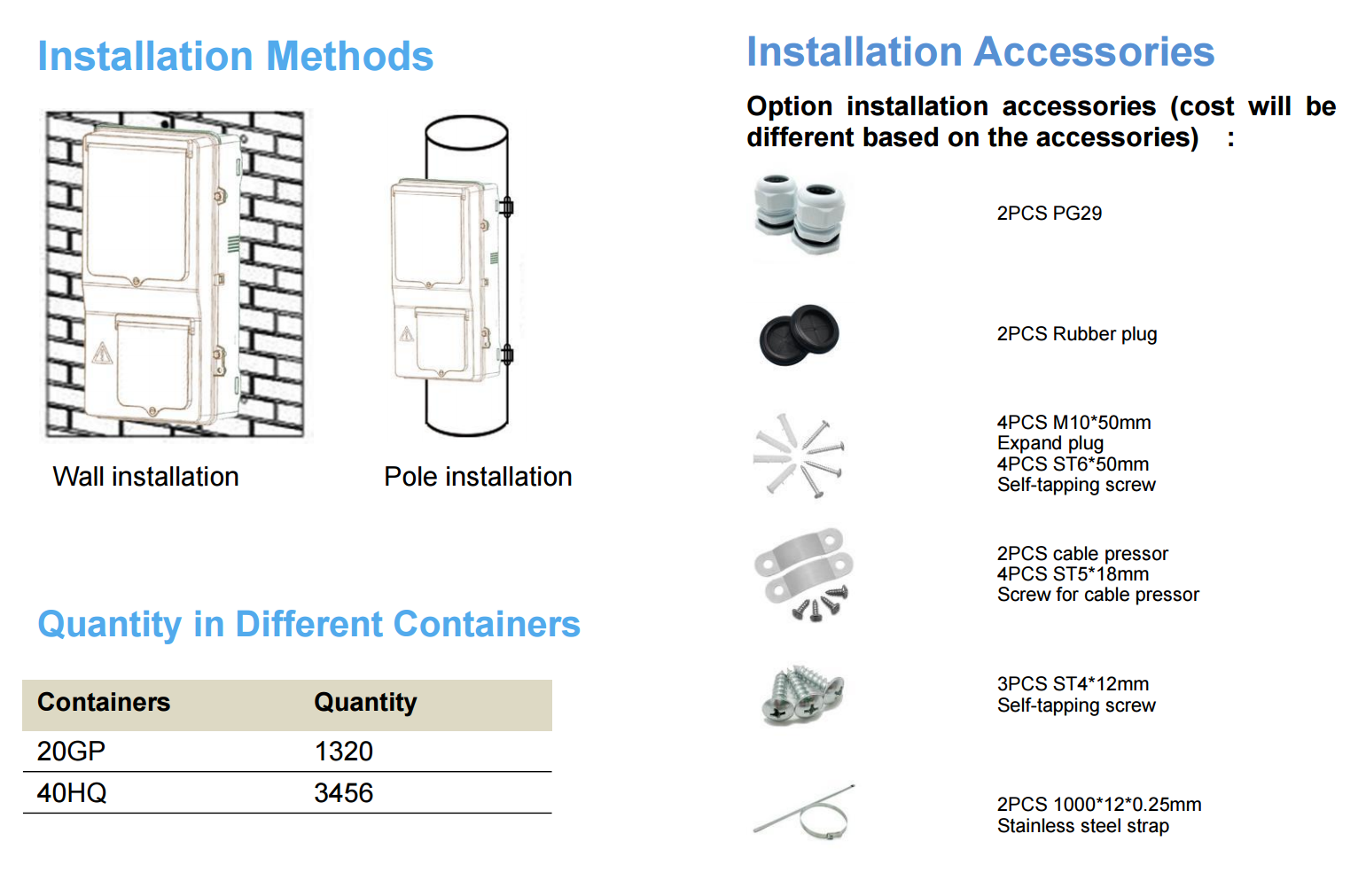

| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2.5mm, Base 2.5mm, windows 2mm |
Noted: Material can be customized
