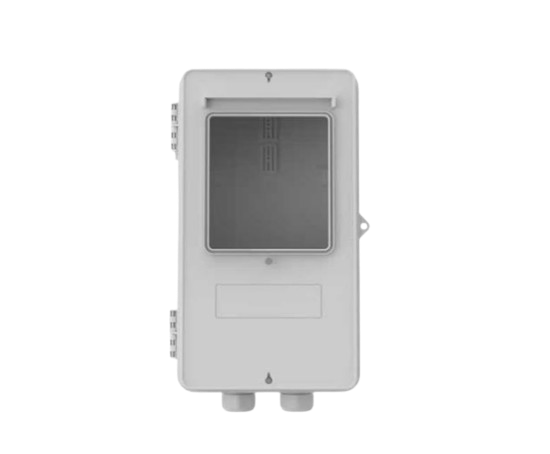

LY-BA34 Three Phase Meter Box
Introduction

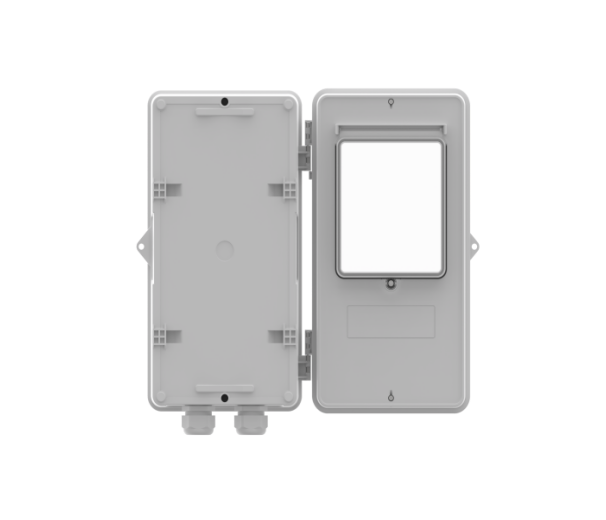

LY-BA34 Three Phase Meter Box is specially designed for anti-tampering and protection of the meter. One BS-type meter can be mounted with a bottom connection. The enclosure has two separated transparent windows, a non-transparent/transparent top cover, and a non-transparent base. The material of the enclosure is polycarbonate, featuring UV resistance and a V0 flame resistance rating. Pole-mounted or wall-mounted, or lock and key protection, are based on project demand. The alarm sensor for enclosure opening is a reserved function. Its up cover and base can be stacked, greatly saving the volume of product transportation.
| Items | Parameters |
|---|---|

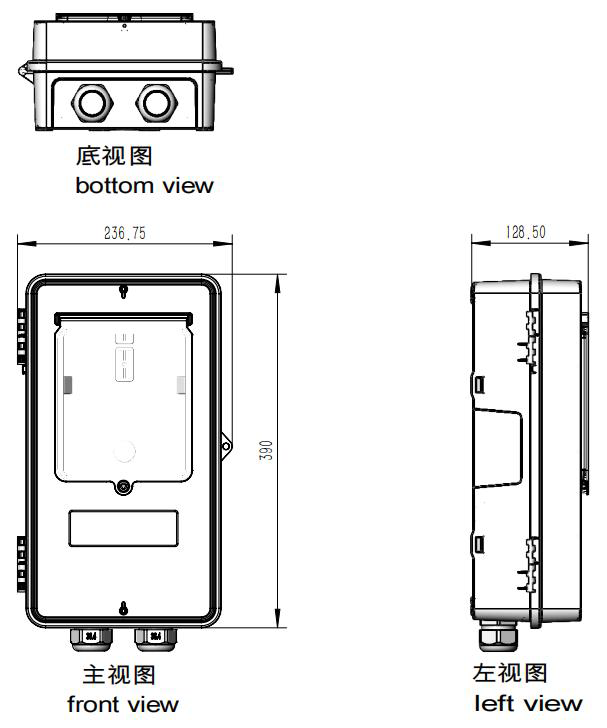

| Dimension | L390mm*W236.75mm*H128.5mm |
| Material of top cover | PC+10%GF non-transparent/ PC transparent |
| Material of turnover window | PC transparent |
| Material of base | PC+10%GF non- transparent |
| Protection degree | IP55, IK10 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Anti-tamper protection | Seal and padlock for cover and seal for windows |
| Method of production | Injection |
| Temperature | -30℃ to 80℃ |
| Installation provision for MCB | Yes |

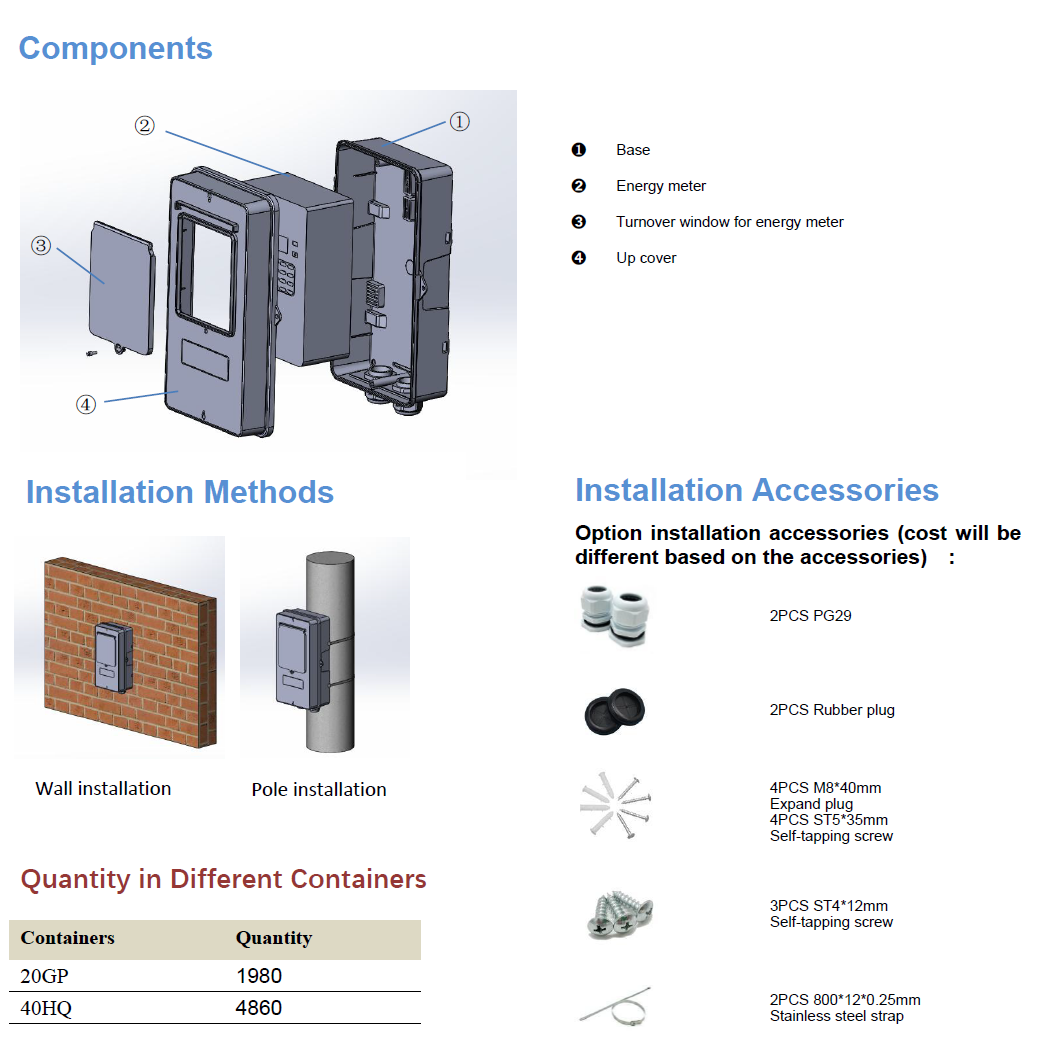

| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2.2 mm, Base 2.2 mm, windows 2.2 mm |
Noted: Material can be customized
