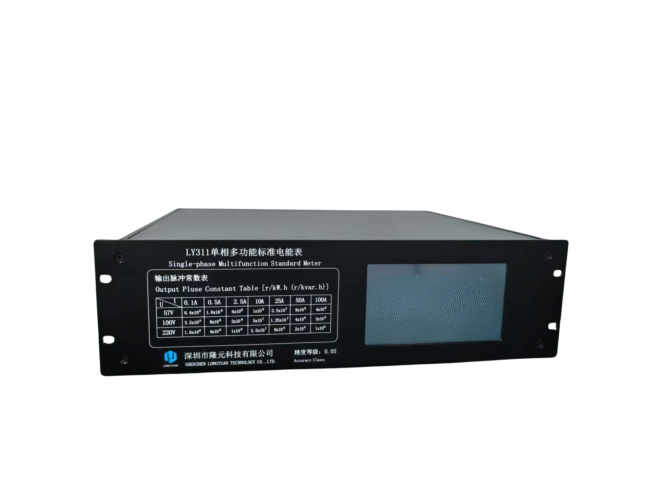

LY311 Single Phase Multi-Function Standard Meter Accuracy Class0.05
Introduction
LY311 Single Phase Multi-Function Standard Meter is a new generation of multifunctional standard meter produced by our company, which adopts new hardware and software design, and can simultaneously measure single-phase voltage, current, frequency, phase, active power, reactive power, apparent power, active power, reactive power, and can measure high-order harmonic distortion (up to 64th harmonic) and the characteristics of the hardware gearshift of the small current, which makes the whole machine with a wider measuring range and wider application range. It has a wider measurement range and a wider application range.
- Electrical energy errors can be checked.
- Real-time oscilloscope display curves are available U(t), I(t).
- It can measure the stability of single-phase AC voltage, current and power.
- Equipped with RS485 communication interface, it can directly communicate with PC on-line.
- Measurable up to 120% of the volume limit.
- Long/short terminal cover
| Items | Parameters |
|---|---|
| Rated Voltage (Un) | 60V, 120V, 240V, 480V (automatic range switching) |
| Voltage measurement range | (0~120%) RG |
| Voltage measurement resolution | 0.01% RG |
| Current measurement range | (0~120%) RG |
| Current measurement resolution | 0.01% RG |
| Phase measurement range | 0° ~359.999 ° |
| Phase measurement resolution | 0.001° |
| Frequency measurement range | 45~65Hz |
| Frequency measurement resolution | 0.001Hz |
| Power Factor Measurement Resolution | 0.0001 |
| load capacity | More than 20mA |
| power wastage | Less than 30VA |
| preheating time | Less than 30 minutes |
| operating temperature | 10℃~35℃ |
| relative humidity | ≤85%, no corrosive gases |
