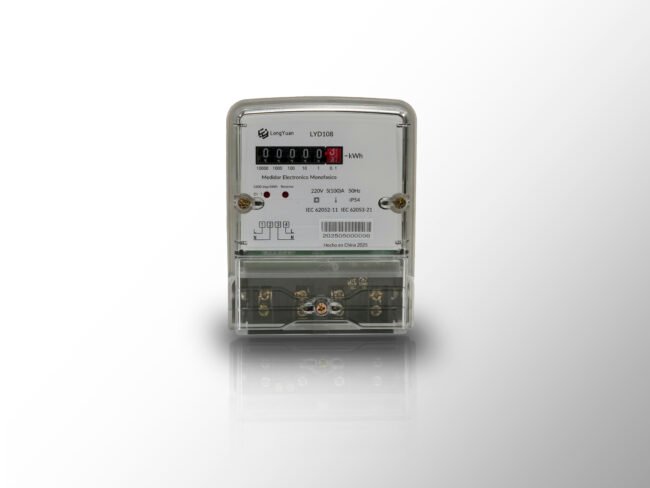

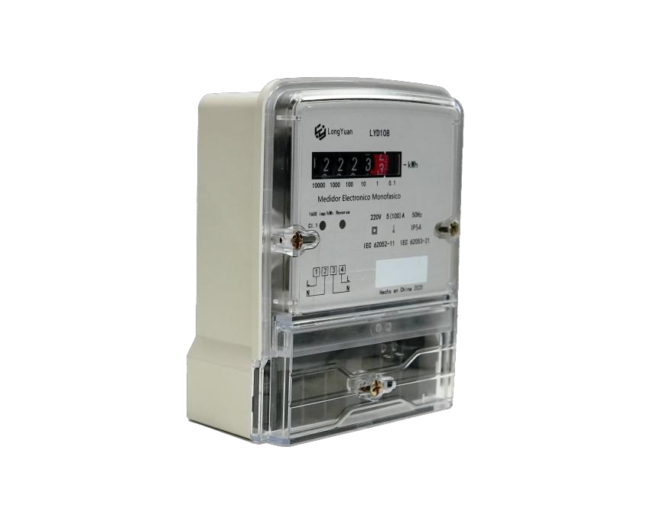

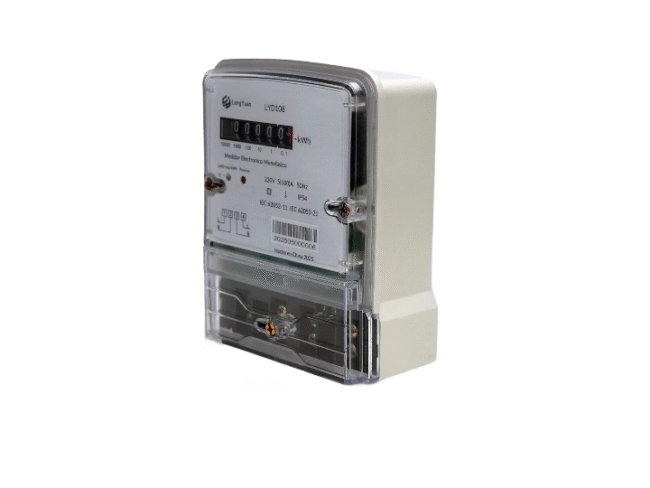

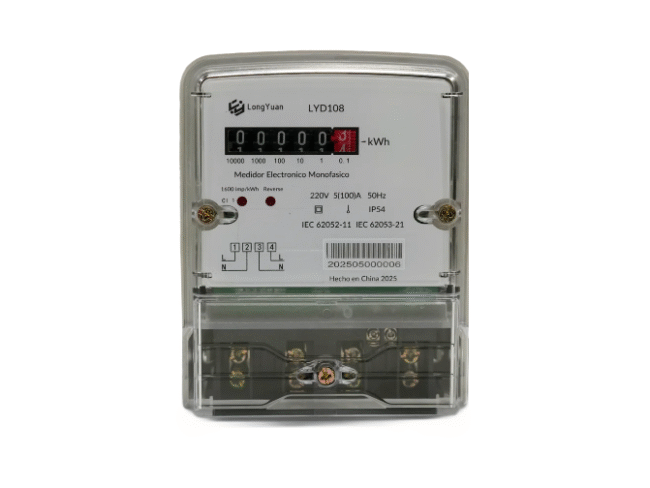

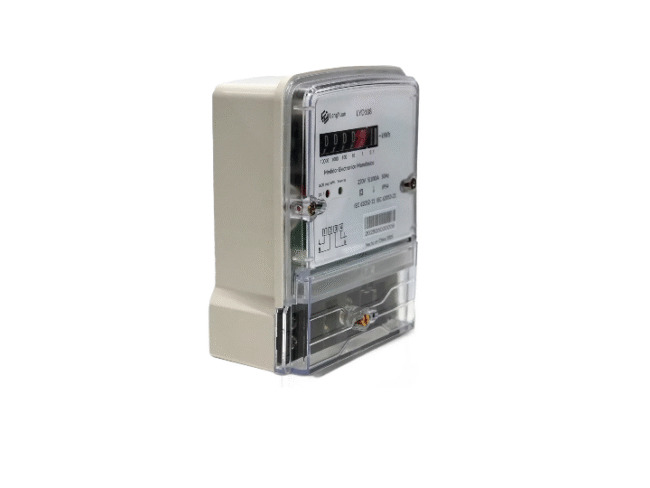

Single Phase Meter LYD108
Introduction
LYD108 single phase meter for residential users with advanced and latest technology. It is low cost, register type, compacted size, and perfect accuracy. The meter is built with high-quality elements which allows the meter to have an excellent and stable performance. It is compliant with IEC62052-11 62053-21 standard. The Polycarbonate (PC) is used for the external structure and transparent cover of the meter, these high engineering materials allow the meter to be installed outdoors without problems in any environment.
- Active energy
- Single tariff
- Register 5+1
- Reverse energy can be measured in forward way
- Screw /ultrasonic sealing
- Long/short terminal cover
Deprecated: trim(): Passing null to parameter #1 ($string) of type string is deprecated in /home/u427399520/domains/szlongyuan.com/public_html/wp-content/plugins/tablepress/classes/class-elementor-widget-table.php on line 260
| Items | Parameters |
|---|---|
| Rated Voltage (Un) | 120V,220V,230 V,240V |
| Working Voltage Range | 0.70 Un - 1.20 Un |
| Frequency | 50 or 60 Hz |
| Base Current (Ib) | 5 A, 10A |
| Maximum Current (Imax) | 60 A, 80A, 100A |
| Starting Current | 0.4% Ib (Class 1) |
| Voltage Circuit Power Consumption | ≤ 2 W 10 VA |
| Current Circuit Power Consumption | ≤ 1 VA |
| Display | Register 5+1 |
| Working Temperature Range | -25 °C ... 70 °C |
| Storage Temperature Range | -40 °C ... 70 °C |
| Humidity | ≤ 95 ％ |
| Accuracy Class | Active class 1 |
| Protection Class | IP54 |
