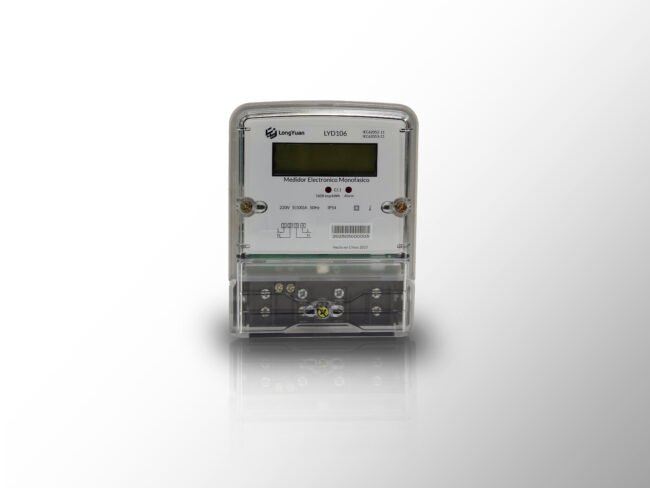

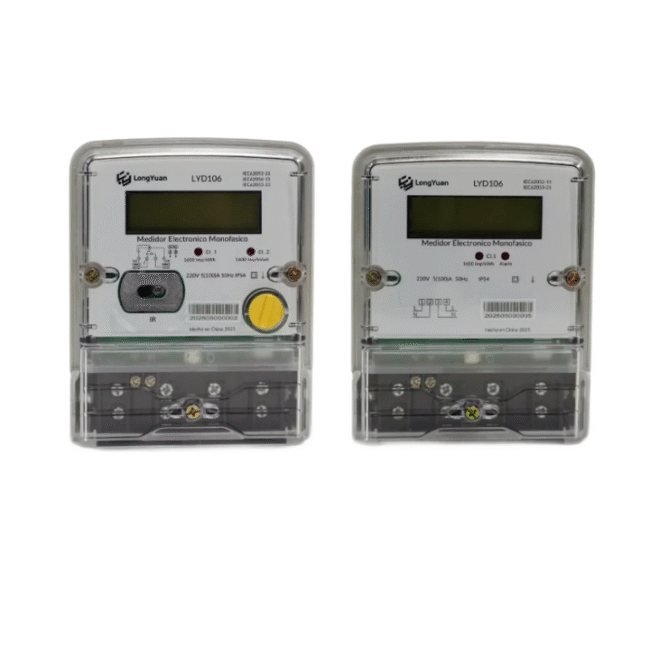

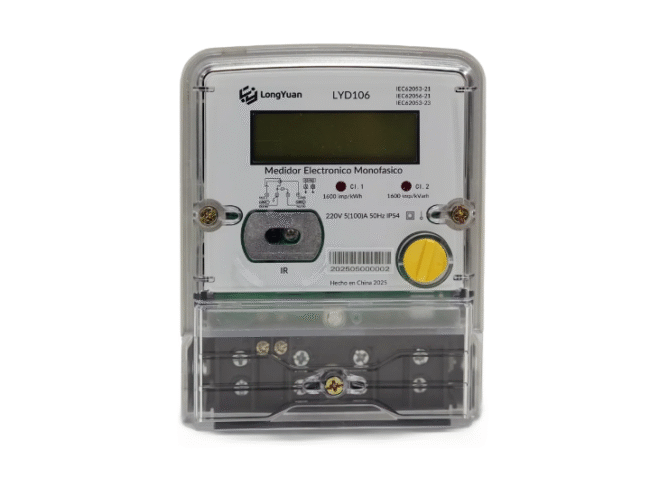

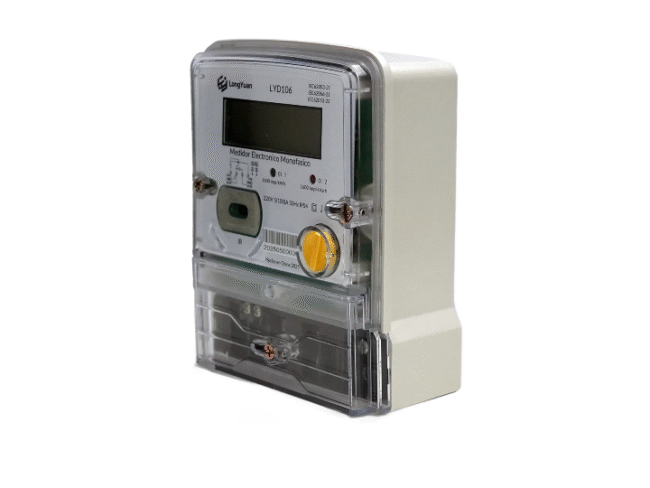

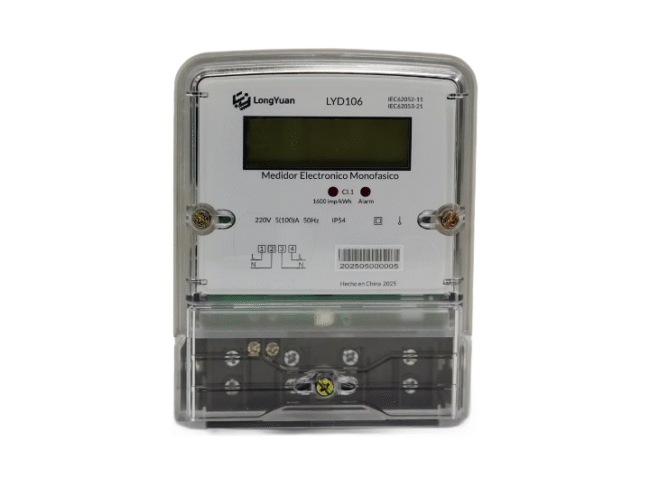

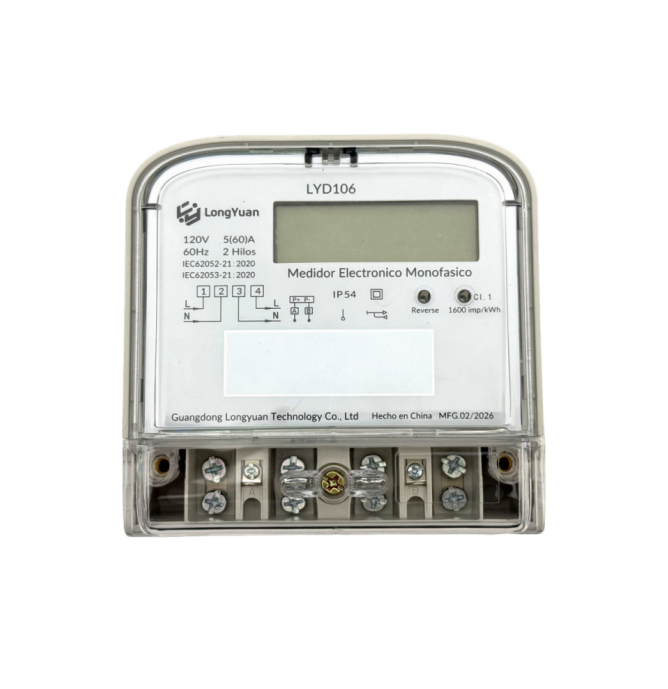

LYD106 Single Phase Multi-function Meter
Introduction
LYD106 Single Phase Multi-Function Meter for residential users with advanced and latest technology. It is low cost, display LCD type, compact size, and perfect accuracy.
The meter is built with high-quality elements, which allows the meter to have an excellent and stable performance. It is compliant with IEC62052-11, 62053-21 standard. The Polycarbonate (PC) is used for the external structure and transparent cover of the meter; these high engineering materials allow the meter to be installed outdoors without problems in any environment.
- Active energy, Reavtive energy
- Multi-tariff
- Display LCD 5+1,6+2
- Reverse energy can be measured in forward way
- Screw /ultrasonic sealing
- Long/short terminal cover
- Multi tariff
- Display when power-off
- RS485 communication
- Infrared communication
- Maximum demand
| Items | Parameters |
|---|---|
| Rated Voltage (Un) | 120V,220V,230 V,240V |
| Working Voltage Range | 0.70 Un - 1.20 Un |
| Frequency | 50 or 60 Hz |
| Base Current (Ib) | 5 A, 10A |
| Maximum Current (Imax) | 60 A, 80A, 100A |
| Starting Current | 0.4% Ib (Class 1) |
| Voltage Circuit Power Consumption | ≤ 2 W 10 VA |
| Current Circuit Power Consumption | ≤ 1 VA |
| Display | Display LCD 6+2 |
| Working Temperature Range | -25 °C ... 70 °C |
| Storage Temperature Range | -40 °C ... 70 °C |
| Humidity | ≤ 95 ％ |
| Accuracy Class | Active class 1, Optional Reactive 2.0 |
| Protection Class | IP54 |
| Infrared communication | Optional |
