Single Phase Meter Enclosure LY-BA12
Introduction

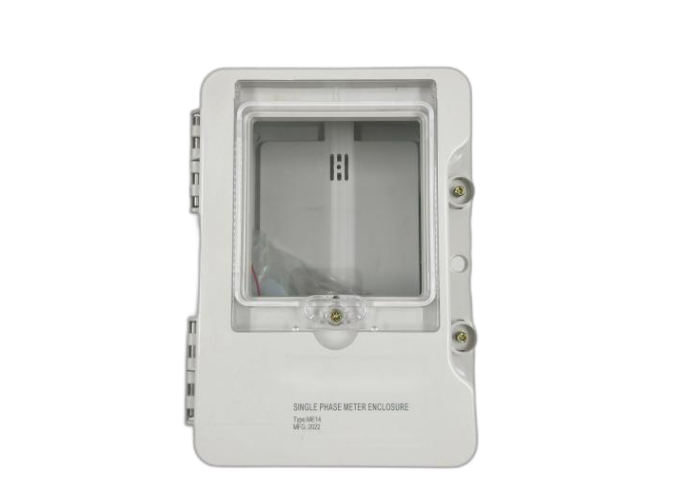

LY-BA12 Single phase meter enclosure is specially designed for the purpose of anti-tamper and protection of meter. One BS type meter can be mounted with a bottom connection. The enclosure has with transparent window, transparent/nontransparent top cover, and non-transparent base. The material of the enclosure is polycarbonate with UV resistance and V0 frame resistance degree. Pole-mounted or wall-mounted or lock and key protection are based on project demand. The alarm sensor for enclosure opening is reserved function.
Deprecated: trim(): Passing null to parameter #1 ($string) of type string is deprecated in /home/u427399520/domains/szlongyuan.com/public_html/wp-content/plugins/tablepress/classes/class-elementor-widget-table.php on line 260
| Items | Parameters |
|---|---|

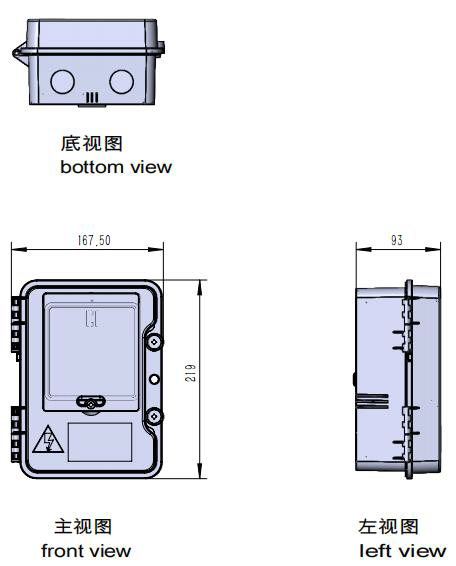

| Dimension | L219mm*W167.5mm*H93mm |
| Material of top cover | PC+10%GF non-transparent/ PC transparent |
| Material of base | PC+10%GF non- transparent |
| Protection degree | IP54, IK10 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Anti-tamper protection | Seal and padlock for cover |
| Method of production | Injection |
| Temperature | -30℃ to 80℃ |
| Heat dissipation | No Ventilation hole for cooling |
| Installation provision for MCB | Yes |

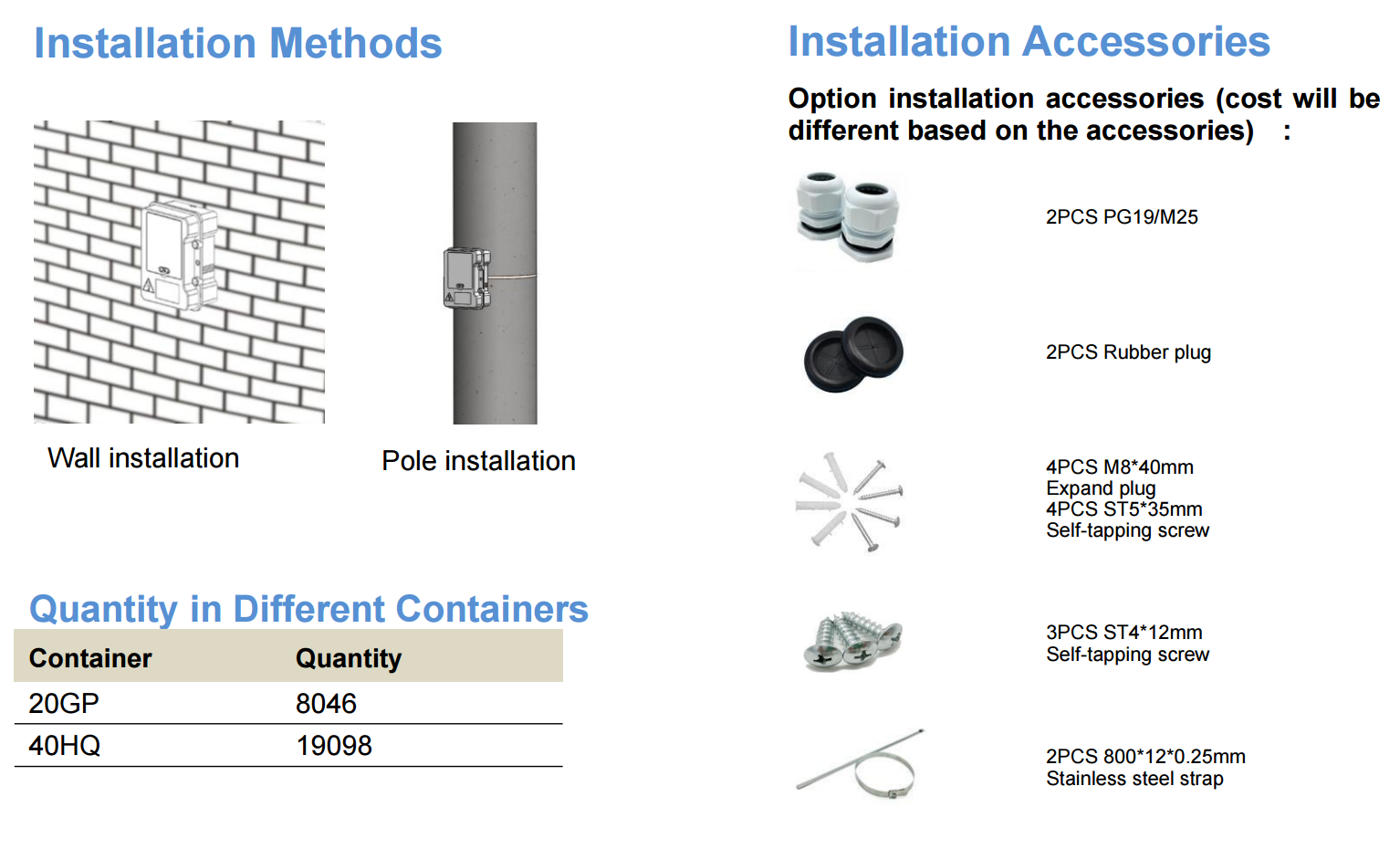

| Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| Thickness | Top cover 2 mm, Base 2 mm, windows 2 mm |
Noted: Material can be customized
