Introduction

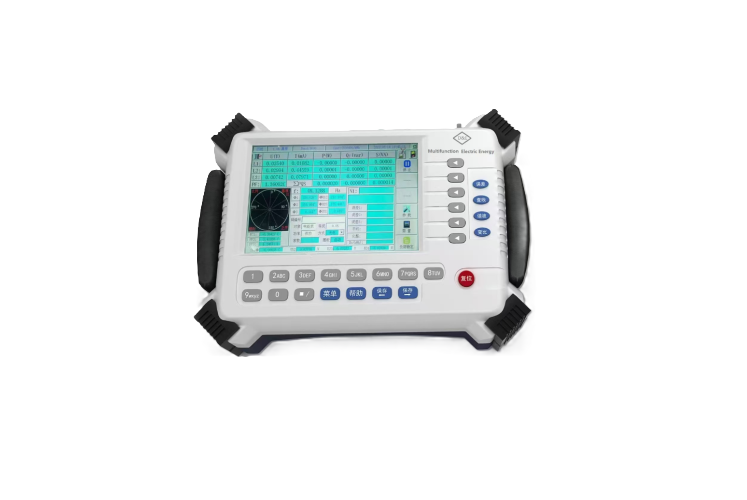

LUXYON 380 Three Phase Portable Smart Calibrator
The LUXYON 380 three Phase portable smart calibrator is the newest product produced by our company by widely visiting users and referring to the advantages of the same kind of products home and abroad. The measured part of the product adopts high speed A/D transmission to send DSP to conduct digital processing, which largely improves measured degree of accuracy and stability. Central processing part adopts 32-bit ARM embedded technology to make instrument interface novel, function abundant, operation distinct and easy, and performance steady. Class of accuracy: Class 0.05.
- 【3-in-1 Integration】Multimeter, Oscilloscope, and Data Logger in one versatile device
- 【High Measurement Accuracy】4½-digit accuracy, 60,000-count resolution, and True RMS (TRMS) measurement
- 【Display & Touch】5-inch capacitive touchscreen for rich data display and excellent interactive experience
- 【High-Definition Waveform Display】720P HD resolution screen for clear, detailed waveform visualization
- 【Multiple Measurement Functions】Voltage / Current / Resistance / Capacitance / Frequency / Continuity / Waveform analysis
- 【Intelligent Auto Recognition】Auto-ranging for simpler operation and minimized user errors
- 【Battery & Charging】Built-in 6000mAh rechargeable battery, supports Type-C wired charging and wireless charging
- 【Data Upload】Measurement data can be uploaded via WiFi to the cloud or a local server, or exported to a USB flash drive
- 【Smart Voice Interaction】Voice-activated measurements, intelligent mode switching, and real-time data readouts.
- 【Handheld Design】Compact 172x82x44mm lightweight chassis with a built-in rechargeable battery, perfect for field testing and mobile applications
- 【Safety Protection】Complies with CAT III 600V / CAT II 1000V industrial safety standards, features overload protection, short-circuit protection, and misoperation protection to ensure maximum safety during use
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage Measurement | 600mV、6V、60V、600V、6000V | ±(0.05%+5d) |
| AC Voltage Measurement | 600mV、6V、60V、600V、750V | ±(0.3%+15d) |
| DC Current Measurement | 600uA、6000uA、60mA、600mA 6A、10A | ±(0.2%+5d) ±(0.3%+5d) |
| AC Current Measurement | 600uA、6000uA、60mA、600mA 6A、10A | ±(0.5%+15d) ±(0.75%+15d) |
| Resistance Measurement | 600Ω、6KΩ 、60KΩ、600KΩ、6MΩ | ±(0.1%+10d) |
| Capacitance Measurement | 6nF、60nF、600nF、6uF、60uF 600uF、6mF、60mF | ±(2.5%+30d) ±(3.5%+30d) |
| Frequency Measurement | 10Hz~60MHz | ±(0.01%+5d) |
| Continuity Measurement | 0~1000Ω Continuity threshold: <22Ω continuous beep | ±(0.2%+5d) |
| Diode Measurement | 0V ~3.0V voltage drop display Supports multi-segment tone | ±(1%+5d) |
| Items | Parameter | Items | Parameter |
|---|---|---|---|
| Number of Channels | 2 | Cursor Measurement | Time, Period, Frequency, Voltage |
| Analog Bandwidth | 20MHz | Probe Ratio | 1X/10X |
| Max Sampling Rate | 100MSPS | Vertical Resolution | 8bit |
| Memory Depth | 100kpts | Input Coupling | DC/AC |
| Input Impedance | 1MΩ | One-Touch Auto | Supported |
| Time Base Range | 50ns ~ 50s | One-key Return to Center | Supported |
| Vertical Sensitivity | 10mV/div ~ 10V/div(1X) | Waveform Storage | Supported, BMP Format |
| Max Input Voltage | ±40V(1X range) ±400V(10X range) | Interface Type | MCX |
| Trigger Mode | Auto/Normal/Single | Trigger Edge | Rising / Falling Edge |
