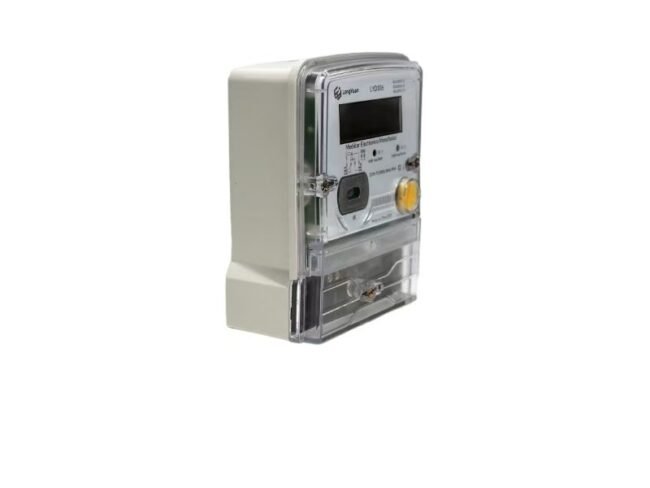

LYD106 Single Phase Meter
Introduction
LYD106 single phase meter for residential users with advanced and latest technology. It is low cost, Display LCD type,compacted size , perfect accuracy and ultrasonic sealing.
The meter built with high quality elements which allows the meter to have an excellent and stable performance. It is compliant with IEC62052-11 62053-21 standard.The Polycarbonate (PC) is used for the external structure and transparent cover of the meter, these high engineering materials allow the meter to be installed outdoors without problems in any environment.
- Active energy, Reavtive energy
- Multi-tariff
- Display LCD 5+1,6+2
- Reverse energy can be measured in forward way
- Screw /ultrasonic sealing
- Long/short terminal cover
- Multi tariff
- Display when power-off
- Infrared communication
- Maximum demand
| Items | Parameters |
|---|---|
| Rated Voltage (Un) | 120V,220V,230 V,240V |
| Working Voltage Range | 0.70 Un - 1.20 Un |
| Frequency | 50 or 60 Hz |
| Base Current (Ib) | 5 A, 10A |
| Maximum Current (Imax) | 60 A, 80A, 100A |
| Starting Current | 0.4% Ib (Class 1) |
| Voltage Circuit Power Consumption | ≤ 2 W 10 VA |
| Current Circuit Power Consumption | ≤ 1 VA |
| Display | Display LCD 6+2 |
| Working Temperature Range | -25 °C ... 70 °C |
| Storage Temperature Range | -40 °C ... 70 °C |
| Humidity | ≤ 95 ％ |
| Accuracy Class | Active class 1, Optional Reactive 2.0 |
| Protection Class | IP54 |
| Infrared communication | Optional |
